FLUID MECHANICS


                 Exercise

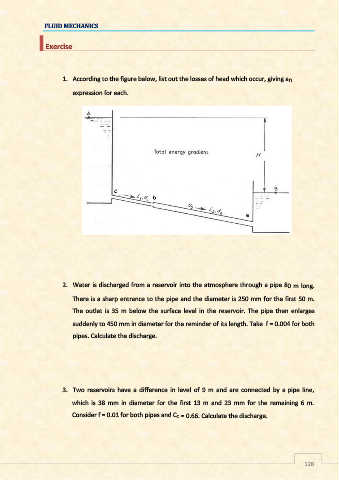

                       1.  According to the figure below, list out the losses of head which occur, giving an

                          expression for each.





































                       2.  Water is discharged from a reservoir into the atmosphere through a pipe 80 m long.

                          There is a sharp entrance to the pipe and the diameter is 250 mm for the first 50 m.

                          The outlet  is 35  m below the  surface  level  in the  reservoir. The  pipe  then  enlarges
                          suddenly to 450 mm in diameter for the reminder of its length. Take  f = 0.004 for both

                          pipes. Calculate the discharge.








                       3.  Two  reservoirs  have  a  difference  in  level  of  9  m  and  are  connected  by  a  pipe  line,

                          which  is  38  mm  in  diameter  for  the  first  13  m  and  23  mm  for  the  remaining  6  m.
                          Consider f = 0.01 for both pipes and CC = 0.66. Calculate the discharge.








                                                                                                           128
